Advanced Electronic Universal Testing Machine Computer Control High Low Temperature

Name: Advanced Electronic Universal Testing Machine Computer Control High Low Temperature
Brand: JINHAIHU
Price: 5800 USD

Brand Name : JINHAIHU

Model Number : XWW-

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Price : USD 5800~7500/ set

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 10~20 work days

Packaging Details : Standard export wooden cases

Product Name : Computer Control High-Low Temperature Universal Testing Machine

Capacity : 5KN, 10KN, 20KN, 50KN

Accuracy : ±0.5%

Low temperature : -85℃ can be customized

High temperature : +125℃ can be customized

Cooling system : Liquid nitrogen or compressor

Contact Now

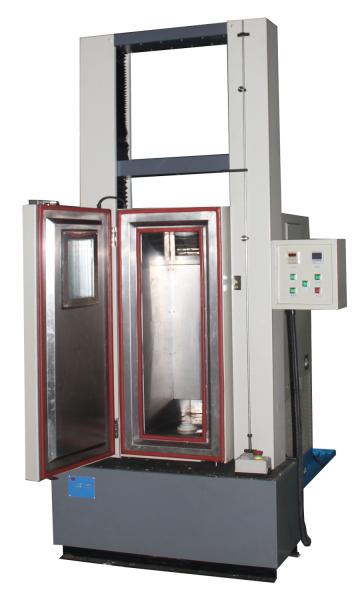

Computer Control High-Low Temperature Universal Testing Machine

Description:

Computer Control High-Low Temperature Universal Testing Machine:

This machine combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process.Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.

Tensile testing machine parts

Model	XWW
Type	floor model with single test space
Max. Load	1KN, 10KN, 20KN, 50KN
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	0.5%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05-500mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	430 Can be customized
Total Crossbeam Travel	1100mm Can be customized
Sample Size	Max.253mm(widethick)Can be customized
Clamps	Tensile jig
PC System	Equipped with brand computer and color inkjet printer
Power Supply	AC220V;400w
Standards	ISO7500-1, ISO5893,ISO9969, ASTMD638695790

High and low temperature chamber

Inner size	220200500(width×deep×height mm)Can be customized
Outside dimension	420×900×960 (width×height×depth mm )Can be customized
Control temperature range	-85 ℃～+125 ℃ Can be customized
Temperature fluctuation	±0.5 ℃
Temperature deviation	±2 ℃
Temperature fall time	0.7~1 ℃ / min

Introduction of the UTM software:

Universal Testing Machine Software (more than the following)

This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.
Based on Windows, simple operation and easy to learn.
Languages switch between Simplified Chinese, traditional Chinese and English.
Ten user accounts and passwords can be created.
It has the protection function of overloading: overloading value can be set by user.
The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.
Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.
Force value dual-correction system: auto set and zero, auto identification and import of correction data.
It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.
Compare among the test curves in the same group though piling them up.

Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
